Cutting

waterjet cutting machine

AT&F’s laser cutting metal fabrication capabilities are second-to-none. We offer precise state-of-the-art metal cutting services, including oxy-fuel, water jet, laser, plasma, high def plasma, and robotic contour beveling.

Oxy fuel, high definition plasma, laser, water jet, and robotic contour beveling combine to offer a full range of cutting capabilities to meet a wide variety of customer requirements from a single vendor.

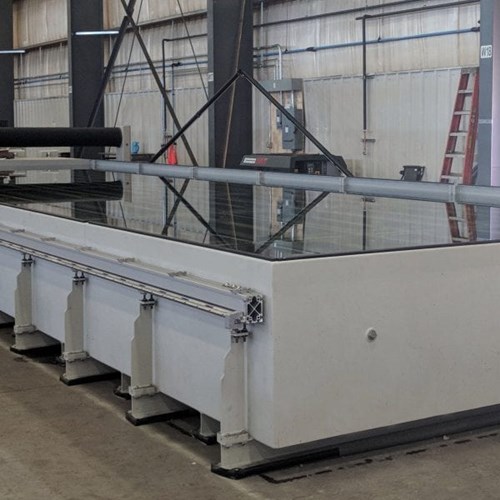

Water Jet Cutting

  • 14’ x 30’ cutting envelope
  • Thicknesses up to 12 in (30.41 cm)
  • Most accurate 5-Axis cutting head of its kind
  • Wide Cutting Angle: From 0° vertical to 90° horizontal
  • Unlimited rotation in either direction without wind up or unwind
  • Range of Travel: 12” vertical travel on Z-axis
  • Accuracies: ± 0.0166 degrees (± 1 arc minute)

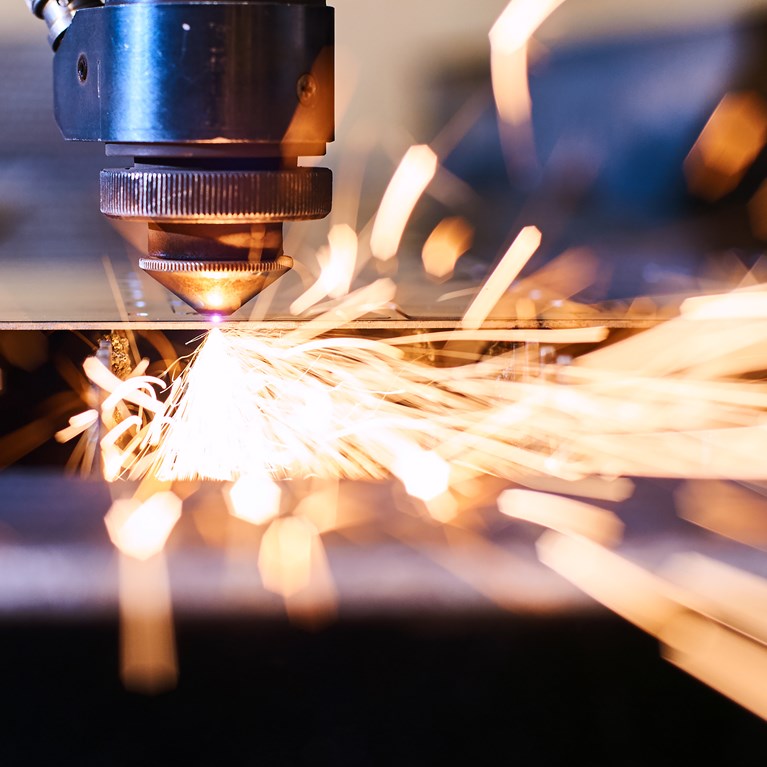

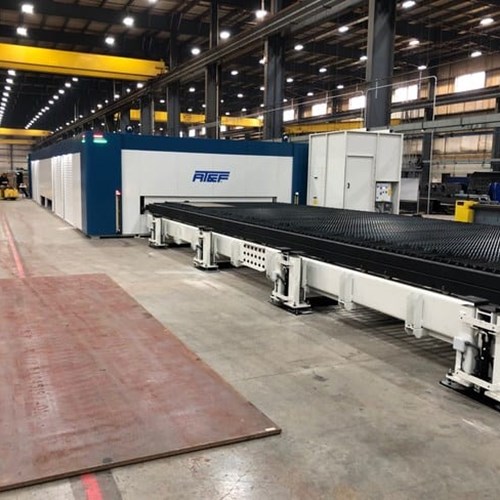

Laser Cutting Capabilities

  • Up to 1-1/4″ thick
  • Lengths up to 114′
  • Widths up to 12′

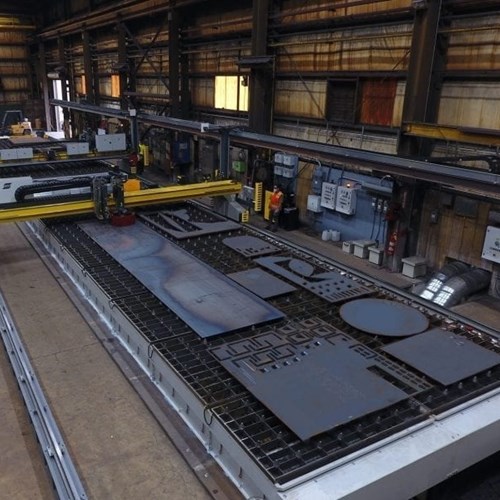

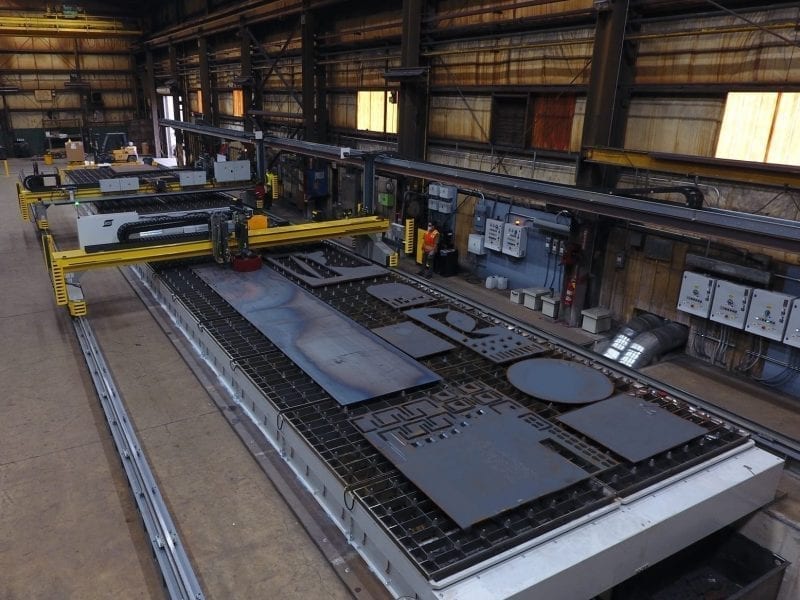

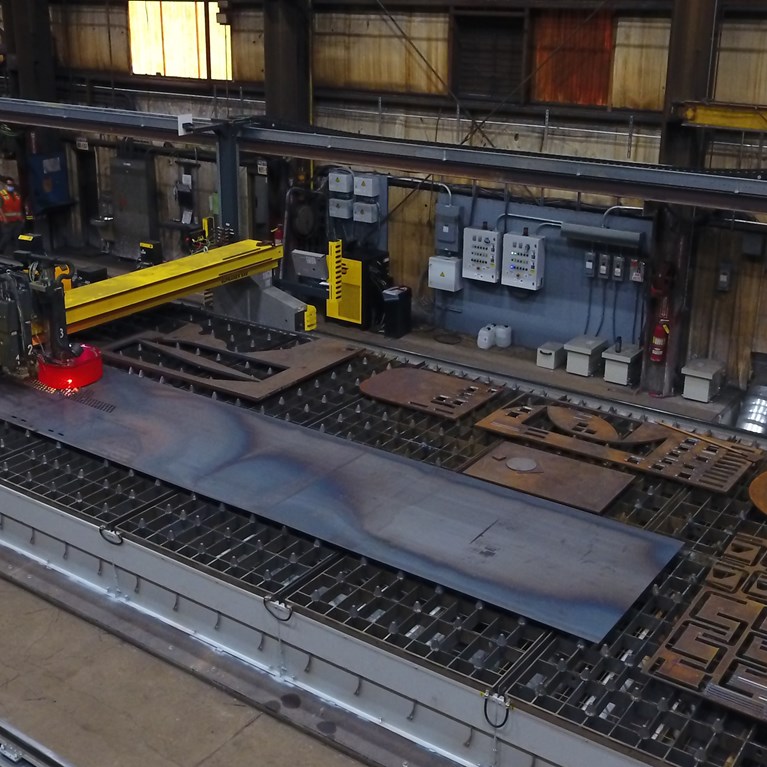

HD Plasma Cutting

  • 5-Axis head with unlimited rotation
  • 12 in (305 mm) vertical travel on Z-axis
  • 10 ft x 48 ft (3.05 m x 14.63 m) cutting envelope

Robotic Contour Beveling Capabilities

  • Oxy Fuel; Up to 11″ thick
  • Plasma; From 3/4″ up to 1-1/4″ thick

Burning Capabilities

  • CNC Flame up to 36″ thick
  • CNC Plasma Arc up to 6-1/2″ thick
  • High Def Plasma up to 1-1/2″ thick, 10′ wide, and 100′ long

Materials Include:

  • All grades of carbon steel
  • High strength steel
  • Alloy steel
  • Specialty metals
  • Metallic armor

See our other fabrication services and capabilities.

Water jet head shot

thick steel plate cutting

Laser plasma cutting

laser cutting
