Horizontal Boring Mill- 5-axis

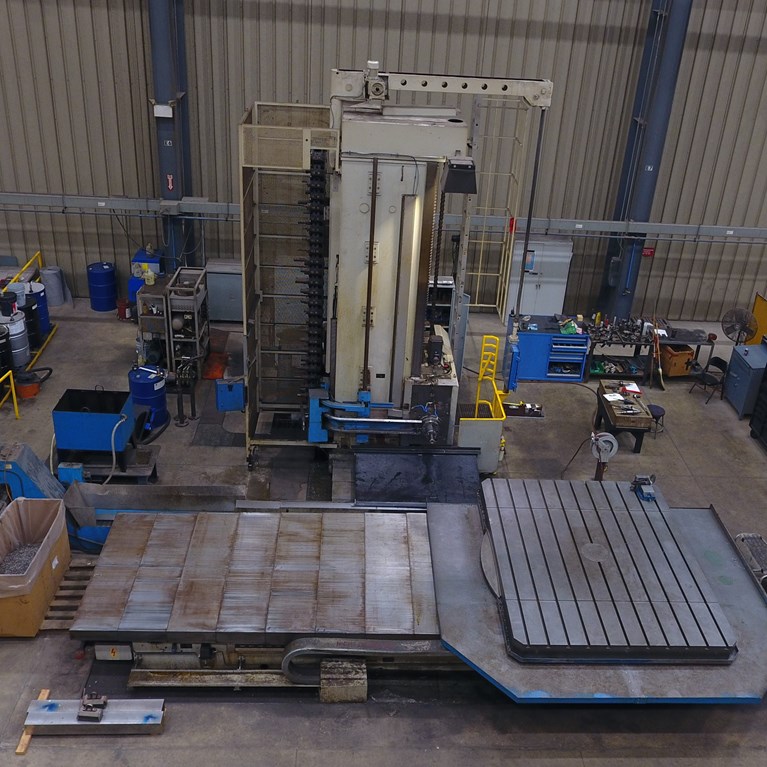

The horizontal boring mill 5-axis on AT&F’s campus in Cleveland is capable of achieving more complex machining due to the level of accuracy, provided by the additional axes. AT&F's 3-axis machine is a traditional HBM, while the 5-axis is a table type boring and milling machine.

HBM 5-axis Specifications

Axis Travel

• Horizontal: X-axis 157.5" (4,000 mm)
• Vertical: Y-axis 118.1" (3,000 mm)
• Spindle: Z-axis 39.4" (1,000 mm)
• Table Travel: W-axis 63" (1,600 mm)

Machine Specs

• 53.6 HP Spindle Drive
• 1,200 RPM Max
• Spindle Dia 6.3" (160 mm)

Machine Bed

• Indexing Rotary Table 118.1" x 98.4" (3,000 x 2,500 mm)
• Table Load Capacity 66,140 lbs (30,000 kg)
• Rotator Table Positioning 360 degrees

CAD/Programming System

• Siemens 840D Control Powerline
• Mastercam X7
• Autodesk Inventor 2020
