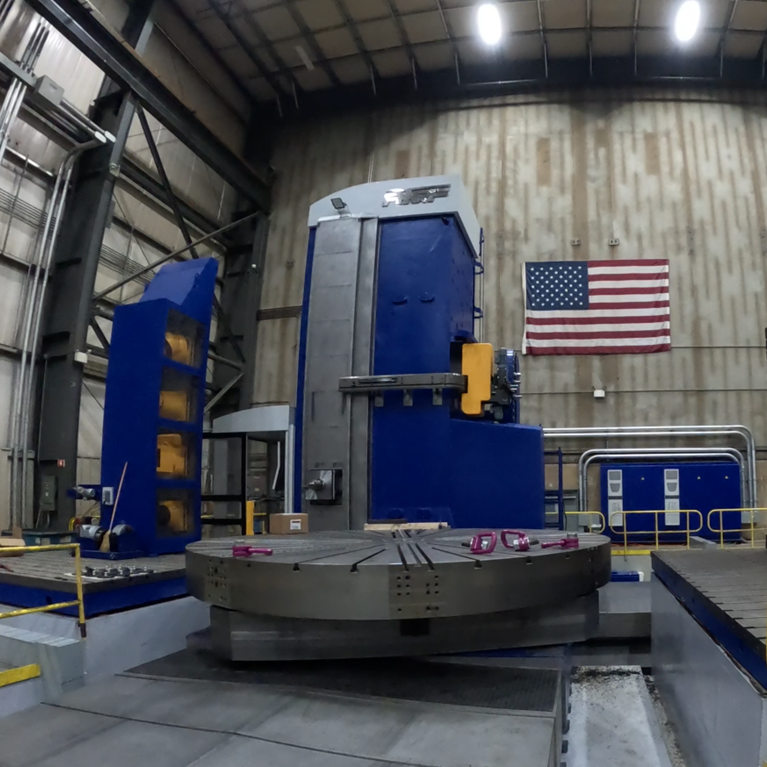

Horizontal Boring Mill- 5-axis
AT&F’s 5-axis Horizontal Boring Mill delivers full-service machining capabilities, including milling, boring, drilling, and threading for large-scale components. Designed for precision and efficiency, it features high-power spindle performance, multi-axis flexibility, and robust load capacity, ensuring complex fabrication needs are met with accuracy. As part of AT&F’s commitment to turnkey manufacturing solutions, this advanced machining center supports customers with precision-crafted components from our Cleveland campus.
HBM 5-axis Specifications
Axis Travel
- X-axis 42.67 ft (13M)
- Y-axis 14.75 ft (4.5M)
- Z-axis 3.94 ft (1.2M)
Machine Specs
- 110HP Spindle Drive
- 2400 RPM Max
- 2315 lbs Torque
- 6.3" Spindle Diameter
Machine Beds
- Rotary Table 9.85 ft x 9.85 ft (3M x 3M)
- Additional Roundtable Diameter 13.13 ft (4M)
- Rotary Table 110,231 lbs (50,000 kg)
- Max Turn Speed (80 rpm)
- Table Travel 9.85 ft (3M)
CAD/Programming System
- Gibbs Cam
- Autodesk Inventor
- Siemens SINUMERIK ONE
- Siemens The Virtual Twin
