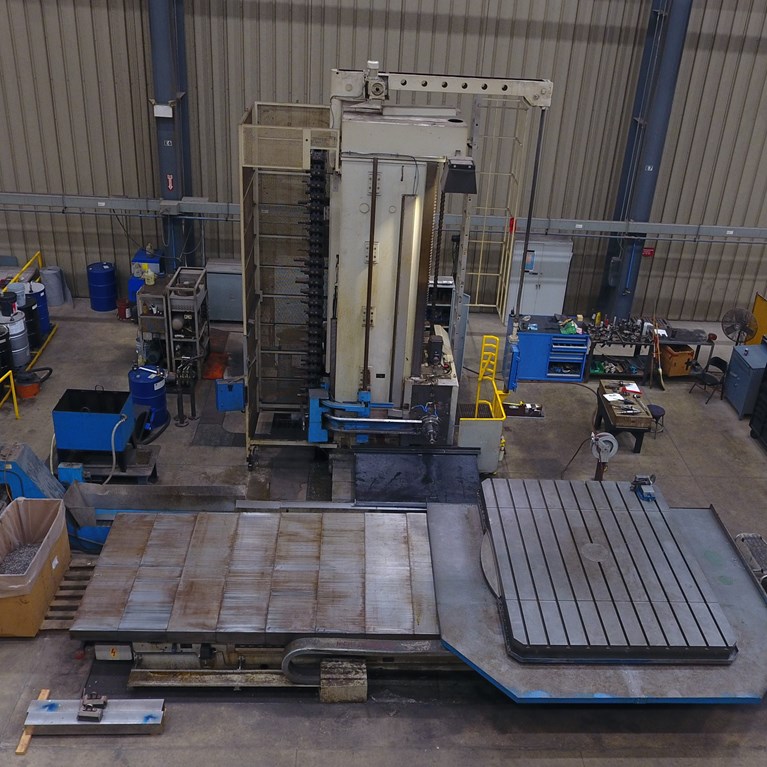

Horizontal Boring Mill-4-axis
AT&F’s 4-axis Horizontal Boring Mill delivers high-accuracy machining for complex steel fabrications. Designed for large-scale components, it ensures precision, power, and efficiency, supporting critical manufacturing needs. Equipped with a rotary table for 360-degree positioning, high spindle performance, and robust load capacity, it enables versatile machining solutions from our Cleveland campus.
HBM 4-axis Specifications
Axis Travel
- Horizontal: X-axis 157.5" (400cm)
- Vertical: Y-axis 118.1" (300cm)
- Spindle: Z-axis 39.4" (100cm)
- Table Travel: W-axis 63" (160cm)
Machine Specs
- 53.6 HP Spindle Drive
- 1,200 RPM Max
- Spindle Dia 6.3" (16cm)
Machine Bed
- Indexing Rotary Table 118.1" x 98.4" (300 x 250cm)
- Table Load Capacity 66,140 lbs (30,000 kg)
- Rotator Table Positioning 360 degrees
CAD/Programming System
- Siemens 840D Control Powerline
- GibbsCam
- Autodesk Inventor
