5-axis Horizontal Boring Mill

5Axismachine 480X413

Horizontal Boring Mill- 5-axis

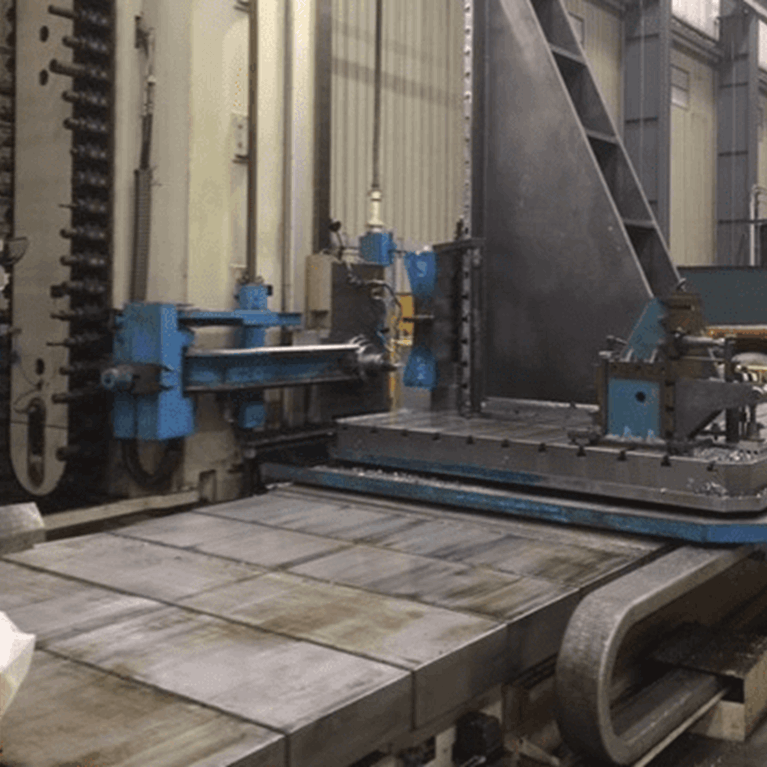

The horizontal boring mill 5-axis on AT&F’s campus in Cleveland is capable of achieving more complex machining due to the level of accuracy, provided by the additional axes. AT&F's 3-axis machine is a traditional HBM, while the 5-axis is a table type boring and milling machine.

HBM 5-axis Specifications

Axis Travel

  • Horizontal: X-axis 157.5" (400cm)
  • Vertical: Y-axis 118.1" (300cm)
  • Spindle: Z-axis 39.4" (100cm)
  • Table Travel: W-axis 63" (160cm)

Machine Specs

  • 53.6 HP Spindle Drive
  • 1,200 RPM Max
  • Spindle Dia 6.3" (16cm)

Machine Bed

  • Indexing Rotary Table 118.1" x 98.4" (300 x 250cm)
  • Table Load Capacity 66,140 lbs (30,000 kg)
  • Rotator Table Positioning 360 degrees

CAD/Programming System

  • Siemens 840D Control Powerline
  • Mastercam X7
  • Autodesk Inventor 2020
